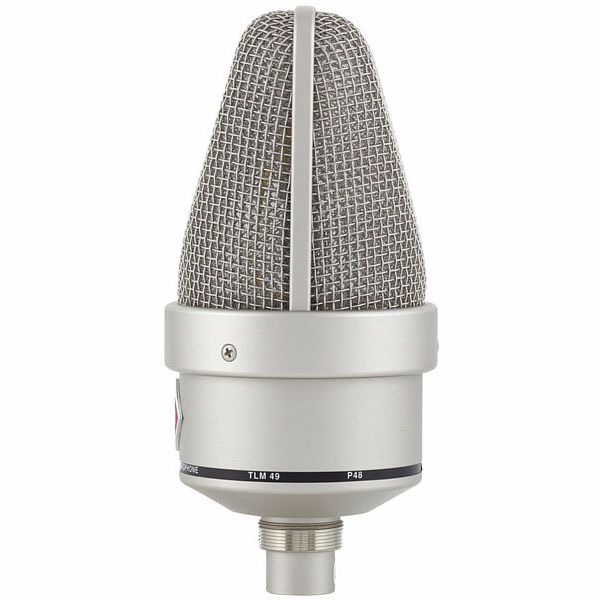

Neumann TLM 49

Studio microphone with “retro” design. Characteristic “warm” voice presentation, ideal for singing. Legendary M 49 and U 47 capsules with cardioid characteristic. The package includes a flexible hanger.

The TLM 49 is a new retro-style large-diaphragm microphone. It has a cardioid pickup characteristic and a “warm” sound presentation, especially suited for vocal pickup.

The external design of the microphone is inspired by the legendary M 49 and M 50 types of the 1950s, with the typical “matt nickel” color. The pickup system uses the quality of the famous K 47 microphone capsule, which is also used in the M 49 and U 47 types. The sound color is therefore also similar to that of these microphones.

The combination of retro design with proven Neumann technology ensures that the microphone has a low self-noise and high gain. The TLM 49 was developed as a vocal microphone, but is also suitable for picking up instruments in professional studios.

It is available in matte nickel.

Characteristics:

– Optimized for voice capture.

– Pressure gradient transducer with large diaphragm capsule of the legendary type U 47

– Cardioid directional characteristic

– Retro” design

– Transformerless circuits

– Acoustically open grille design

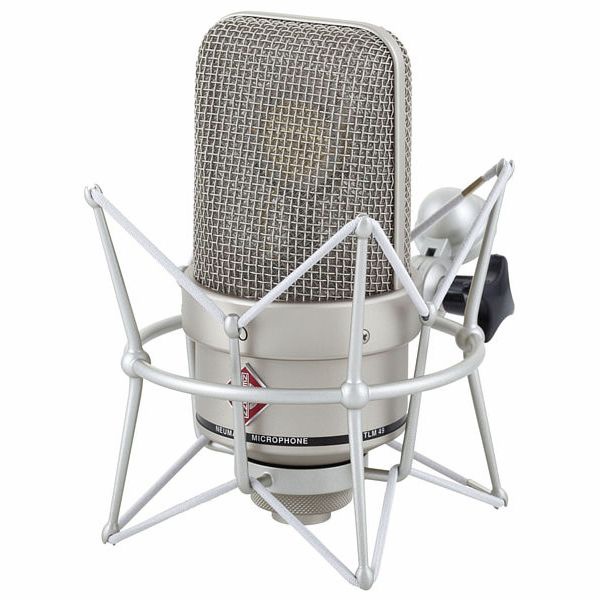

– The packaging includes the EA 3 flexible suspension

Specifications:

– Acoustic system: pressure gradient

– Sensitivity at 1 kHz/1 kOhm: 13 mV/Pa

– Minimum load impedance: 1 000 ohms

– CCIR noise level: 23 dB

– Noise level A: 12 dB-A

– CCIR signal-to-noise ratio: 71 dB

– Signal-to-noise ratio A: 82 dB

– Max. Sound Pressure Level (SPL) at < 0.5% distortion: 110 dB

– Maximum output voltage: 11 dBu

– Microphone amplifier dynamic range, 0.5%: 98 dB

– Supply voltage (P48, IEC 61938): 48 V ± 4 V

– Supply current (P48, IEC 61938): 3.2 mA

– Connector: XLR 3M

– Diameter: 78 mm

– Length: 165 mm

Basic accessories:

– Swivel joint SG 1

– Anti-popular filter PS 15 / PS 20
